What is Flex pcb assembly?
Flex PCB Assembly is the process of soldering electronic components onto flexible circuit boards (made of polyimide or similar bendable materials) instead of rigid PCB substrates. It enables 3D bending, folding, or continuous flexing in compact or dynamic applications.
Key Features:
Materials: Polyimide base films, thin copper layers.
Applications: Wearables (smart watches), medical devices (endoscopes), automotive sensors, foldable phones.
Advantages: Lightweight, space-saving, vibration-resistant, and ideal for moving parts.
Example: A foldable smart phone hinge uses flex PCBs to connect displays across bending sections.
Here’s a breakdown of what it entails and why it’s unique:
1, The Core: Flexible Substrate
Made from materials like polyimide (Kapton) or polyester (less common).
Thin, lightweight, and inherently bendable or foldable.
Conductive traces are etched or printed onto this flexible base layer.

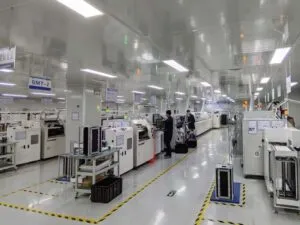

2, The Assembly Process (Similar in principle to rigid PCB assembly, but with critical differences):
Solder Paste Application: Solder paste (tiny balls of solder suspended in flux) is precisely deposited onto the component pads of the flex PCB using a stencil.
Component Placement: Surface Mount Devices (SMDs) are accurately placed onto the solder paste pads using automated pick-and-place machines. Handling is more delicate due to the board’s flimsiness.
Soldering: Primarily done using Reflow Soldering:
The assembly passes through a carefully controlled oven with specific temperature zones.
The solder paste melts (reflows), creating electrical and mechanical bonds between components and pads.
Critical: Temperature profiles must be tightly controlled to avoid damaging the sensitive polyimide material.

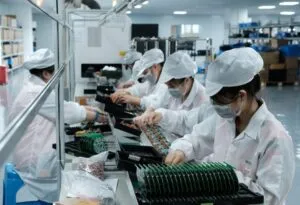

Through-Hole Component Assembly (if needed): Less common on pure flex, but used in rigid-flex designs. Involves inserting component leads through holes and soldering (often manually or with selective wave soldering).
Conformal Coating (Optional): A protective coating may be applied to shield the assembly from moisture, dust, chemicals, or mechanical stress.
Inspection & Testing: Rigorous quality checks are crucial:
Automated Optical Inspection (AOI): Checks for component presence, placement accuracy, and solder joint quality.

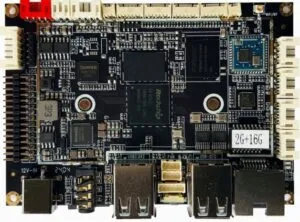

X-ray Inspection (AXI): Essential for inspecting hidden solder joints (like under BGA packages) and potential internal damage from handling.
Electrical Testing: Continuity, isolation, and functional testing to ensure the circuit works correctly.
Visual Inspection: Manual checks, especially around bend areas and connectors.
Final Assembly: Integrating the populated flex PCB into its final enclosure or product.
3, Key Challenges & Special Considerations:
Delicate Handling: Flex PCBs are flimsy and easily damaged during handling, transport, and assembly. Special carriers, fixtures, and careful manual handling are essential.
Thermal Sensitivity: Polyimide has different thermal expansion properties and lower maximum temperature tolerance than FR4. Precise control of soldering temperatures and times is critical to prevent warping, delamination, or blistering.
Component Selection & Placement:
Components must be suitable for potential flexing environments (avoid large, heavy components in bend areas).
Placement must consider bend radii and stress points to avoid cracking solder joints.
Adhesives & Stiffeners: Often used:
Stiffeners: Rigid pieces (usually FR4 or metal) added locally to support connectors, components, or provide mounting points. Applied before or after component assembly.
Adhesives: Used to secure components in high-flex areas or bond stiffeners.
Solder Mask & Coverlay: Instead of rigid solder mask, flex PCBs often use a polyimide coverlay (a separate laminated layer with pre-cut openings) for insulation and protection. Its application and alignment are critical.
Design for Manufacturability (DFM): Collaboration between designer and assembler is vital. Designs must account for bend radii, material limitations, component placement rules, and assembly process constraints specific to flex.
4, Types of Flex PCB Assembly:
Pure Flex Assembly: Components assembled directly onto a fully flexible circuit.
Rigid-Flex Assembly: Components are assembled on the rigid sections of a combined rigid-flex board. This is the most common scenario, leveraging the benefits of both technologies.
5, Why Use Flex PCB Assembly? (Key Advantages):
Space and Weight Savings: Can be folded or shaped to fit into extremely compact spaces; significantly lighter than rigid boards + wiring.
Dynamic Flexing: Designed for applications requiring repeated bending or movement (hinges, folding devices, robotic joints, wearables).
High Reliability (when designed/assembled well): Reduces connection points (solder joints/wire harnesses) prone to failure, especially in vibrating environments.
3D Packaging Freedom: Can be shaped in three dimensions, enabling innovative product designs.
Improved Signal Integrity: Can offer better controlled impedance and reduced crosstalk in high-speed designs compared to wire harnesses.
Durability: Resistant to shock and vibration.
Streamlined Assembly: Integrates multiple rigid boards and connectors into one unit, simplifying overall product assembly.
6, Common Applications:
Consumer Electronics (Smartphones, Laptops, Cameras, Wearables)
Medical Devices (Hearing aids, implants, imaging equipment, probes)
Automotive (Dashboards, sensors, lighting, control systems)
Aerospace & Defense (Avionics, satellites, control systems)
Industrial Equipment (Robotics, sensors, control panels)
Telecommunications (Routers, antennas)
In essence, Flex PCB Assembly is a sophisticated manufacturing process that combines standard SMT techniques with specialized handling, thermal management, and design considerations to build electronic circuits on bendable substrates, enabling lighter, smaller, more reliable, and more dynamic electronic products. The complexity often makes it more expensive than rigid PCB assembly, but the benefits are indispensable for many modern applications.
