A Multilayer PCB (Printed Circuit Board) is a complex circuit board composed of three or more conductive copper layers, sandwiched between insulating layers (prepreg) and bonded under high heat and pressure. These layers are interconnected through vias (plated holes) to form a compact, high-performance circuit structure. Here’s a detailed breakdown:
Key Structural Components
Conductive Layers:
Thin copper foil layers etched into circuit traces.
Each layer can serve distinct functions (signal, power, ground).
Dielectric Material:
Core: Rigid substrate (e.g., FR4) with copper on both sides.
Prepreg: Semi-cured epoxy resin fiberglass that bonds layers during lamination.
Vias:
Through-Hole: Connects all layers.
Blind/Buried: Links outer-inner or inner-inner layers (saves space).
Microvias: Laser-drilled holes for high-density designs (HDI).
Solder Mask & Silkscreen:
Protective coating and component labels on outer layers.
Why Use Multilayer PCBs?
| Advantage | Description |
| Space Efficiency | Fits complex circuits into compact devices (e.g., smartphones, wearables). |
| Enhanced EMI Control | Dedicated ground/power layers reduce noise and crosstalk. |
| Higher Performance | Supports high-speed signals (e.g., DDR4, PCIe) with controlled impedance. |
| Power Integrity | Low-impedance power distribution reduces voltage drops. |
| Durability | Robust mechanical structure vs. single/double-layer boards. |
Multilayer PCB Manufacturing Process
Design:
Layer stackup planning (e.g., 4-layer: Signal-GND-Power-Signal).
Signal integrity simulation (e.g., via Altium, Cadence).
PCB Fabrication:
Inner Layer Imaging: UV exposure to etch copper traces.
Lamination: Layers bonded with prepreg under high heat/pressure.
Drilling & Plating: Laser/mechanical drilling followed by copper via plating.
Outer Layer Processing: Etching, solder mask application, silkscreening.
PCB Testing:
Electrical tests (continuity, isolation), AOI (Automated Optical Inspection).
Multilayer PCB Applications
Consumer Electronics: Smartphones, laptops (6–12 layers).
Automotive: Engine ECUs, infotainment systems (4–8 layers).
Aerospace: Avionics, radar systems (high-reliability, 10+ layers).
Medical: MRI machines, implantable devices (flex-rigid multilayer).
IoT/5G: High-frequency RF modules (e.g., antenna arrays).
Design Challenges
Signal Integrity: Managing crosstalk in dense layouts.
Thermal Management: Heat dissipation in inner layers.
Cost: Higher layer count = 20–30% cost increase per layer.
Manufacturing Tolerances: Tight alignment required for microvias.
Trends & Innovations

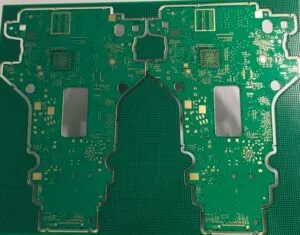

HDI (High-Density Interconnect) PCB: Microvias + thinner dielectrics for miniaturization.
Embedded Passives: Resistors/capacitors integrated into layers.
Low-Loss Materials: PTFE-based laminates for 5G/mmWave frequencies.
Flex-Rigid Multilayer: Hybrid designs for wearables/foldable devices.
Multilayer PCBs enable modern electronics by balancing performance, density, and reliability. While more complex to design/manufacture than single/double-layer boards, they are indispensable for advanced applications. For specific stackup recommendations or material choices (e.g., FR4 vs. Rogers), consult your PCB manufacturer
