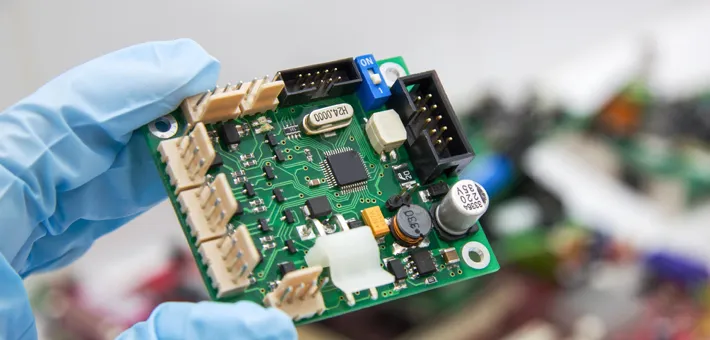

What is SMT PCB Assembly Service?
SMT PCB Assembly Service refers to a specialized manufacturing service focused on assembling printed circuit boards (PCBs) primarily using Surface Mount Technology (SMT). It’s the dominant method for modern electronics manufacturing due to its speed, precision, and suitability for miniaturized components.
Here’s a breakdown of what it entails:
1, Core Technology: Surface Mount Technology (SMT)
Components: Uses Surface Mount Devices (SMDs). These components have small metal contacts (pads or leads) on their bottom or sides, designed to sit on the surface of the PCB, not through holes.
Examples: Tiny resistors, capacitors, ICs (QFP, BGA, QFN), LEDs, connectors (many modern types).
Process: Involves placing components directly onto solder paste applied to the PCB’s surface pads, then melting the paste (reflow soldering) to form electrical and mechanical connections.
2, What the Service Typically Provides:
End-to-End Assembly: Handles the entire SMT assembly process from bare PCB to fully populated board.
3, Component Sourcing:
Turnkey Service: The service provider procures all necessary SMT components based on your Bill of Materials (BOM). This is the most common and convenient option.
Consignment Service: You (the customer) supply all components, and the assembler provides the labor and equipment.
Partial Turnkey/Kitted: You supply some critical or hard-to-find parts; the assembler sources the rest.
PCB Fabrication: Many providers offer PCB fabrication as an integrated service or partner with fabricators.
SMT Process Execution:
Solder Paste Application: Using a stencil (squeegee or jet printing) to apply paste precisely onto PCB pads.
Component Placement: High-speed, high-precision automated pick-and-place machines position SMDs onto the paste. This is the hallmark of SMT assembly.
Reflow Soldering: Passing the board through a precisely controlled reflow oven to melt the solder paste and form reliable joints.
Additional Assembly (Often Included):
Through-Hole Technology (THT) Assembly: Manual or automated insertion and soldering (wave soldering or selective soldering) of any components requiring leads through holes.
Conformal Coating: Applying protective coatings if required.
Quality Control & Testing:
Automated Optical Inspection (AOI): Checks component placement, polarity, and solder joint quality.
X-Ray Inspection (AXI): Essential for inspecting hidden solder joints under components like BGAs.
In-Circuit Testing (ICT) / Flying Probe Testing: Electrical verification of connections and component values.
Functional Testing (FCT): Powering up the board and testing its full functionality against specifications.
Solder Paste Inspection (SPI): Optional pre-reflow check of paste volume and alignment.
Post-Assembly: Cleaning (if needed), depaneling (separating individual boards from a panel), final inspection, and packaging.
3, Key Advantages of SMT Assembly (Why it’s the Standard):
Miniaturization: SMDs are much smaller than through-hole components, enabling smaller, denser, lighter PCBs.
Higher Component Density: Components can be placed on both sides of the board and closer together.
Faster & More Automated: High-speed pick-and-place machines enable rapid, consistent assembly, reducing labor costs, especially for high volumes.
Better Performance: Shorter leads reduce unwanted inductance/capacitance, improving high-frequency performance.
Lower Cost (at Volume): Automation and higher throughput significantly reduce per-unit costs for mass production.
Suitability for Complex Components: Essential for modern IC packages (BGA, QFN, CSP, etc.).
4, Types of Services Offered:
Prototype SMT PCB Assembly: Low-volume, fast-turn assembly for design validation (closely related to your previous question).
Low to Mid-Volume SMT Assembly: Bridging the gap between prototypes and mass production.
High-Volume SMT Assembly: Mass production runs with highly optimized, automated lines.
Mixed Technology Assembly: Combining SMT with Through-Hole (THT) assembly on the same boards.
5, SMT vs. THT in Assembly Services:
While SMT is the primary focus, most modern PCB assembly services handle both SMT and THT. Very few products use only SMT; connectors, large capacitors, transformers, etc., often still require through-hole mounting.
The service will seamlessly integrate both processes: SMT first (via reflow), followed by THT (via wave or selective soldering or hand soldering).
6, Why Use an SMT PCB Assembly Service?
Access to Specialized Equipment: High-cost machines (stencil printers, pick-and-place, reflow ovens, AOI, X-Ray) are required.
Expertise & Experience: Skilled technicians and process engineers ensure quality and reliability.
Component Sourcing & Supply Chain: Leverage the provider’s relationships and volume discounts.
Quality Control: Robust inspection and testing capabilities built into the process.
Scalability: Easily move from prototypes to high-volume production.
Speed & Efficiency: Faster turnaround than in-house assembly for all but the simplest boards.
Cost-Effectiveness: For anything beyond very low volumes, outsourcing is usually cheaper than setting up an in-house SMT line.
In essence: An SMT PCB Assembly Service provides the expertise, advanced equipment, and processes necessary to efficiently and reliably populate your PCBs with the vast majority of modern electronic components using Surface Mount Technology, often handling the entire assembly process including sourcing and testing. It’s the cornerstone service for bringing electronic designs from prototype to mass production.
SMT assembly service at Hitechpcba
Hitechpcba specializes in PCB assembly services, with full turnkey services (PCB fabrication + Component sourcing + PCB assembly + PCBA testing) offering a reliable solution for mounting high-performance devices in electronics. SMT assembly isSupports 0105 components, 0.2mm BGA pitch, and fine-pitch ICs.
With our extensive experience in SMT assembly, we support SMT assembly services with quick turn delivery time, fastest 24Hours finished PCB Assembly. At Hitechpcba, we are committed to delivering quality SMT assembly services tailored to meet your unique needs and industry standards. Our inspection devices includes AOI devices, 3D SPI, X-ray inspection for BGA/QFN and SMT assembly reliability
At Hitechpcba, our extensive expertise in SMT assembly services has made us a trusted partner for intricate designs. Regardless of size specifications, you can rely on us to meet your customized requirements, employing rigorous testing methodologies to ensure quality. Our clientele spans diverse industries, including consumer electronics, miniature electronics manufacturing, automotive, LED technology, medical devices, wireless communication, satellite systems, and beyond.
